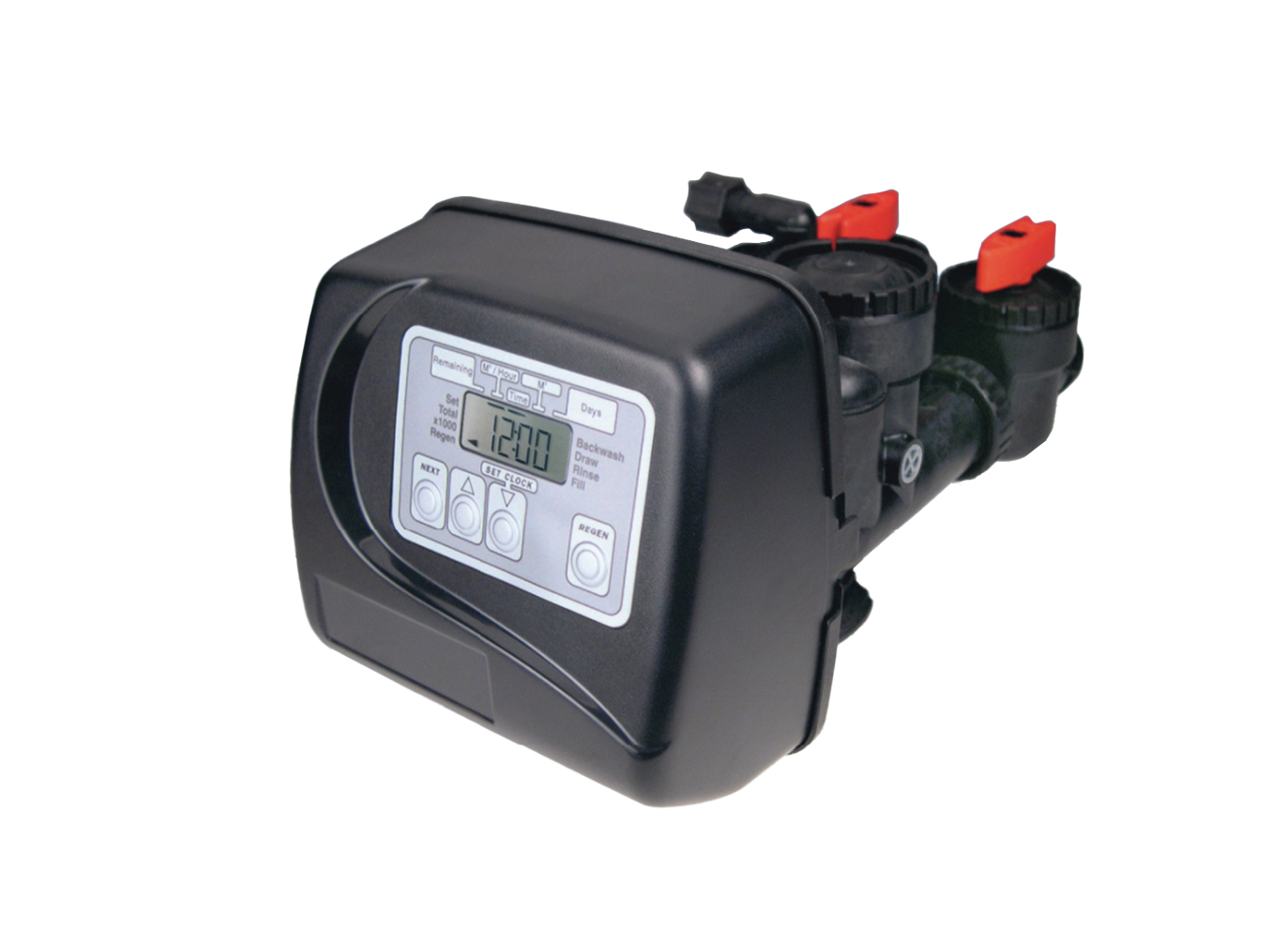

- Solid state microprocessor with easy access front panel settings
- Three modes of operation; meter immediate, meter delayed, or time clock delayed
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully Programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1 - 28 days available
- Backwash and brining ability to 22" diameter tanks
- Downflow / upflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin cell Lithium battery back up with a 24 hour carry over
- 12-volt output AC Adapter provies safe and easy installtion
- Control valve design provides optimum services and backwash rates
- Treated water regeneration refill
- Mixing valve option available
- Low salt alarm
- 24-hour clock
- reliable and proven DC drive
Inlet/Outlet Fittings
3/4" to 1.5" NPS
Cycles
up to 9
Valve Material
Nory (1) or equivalent
Regeneration
downflow/upflow
FLOW RATES
Service @ 15 psi/1 bar drop (includes bypass and meter)
102 lpm
Backwash @ 25 psi/1.7 bar drop (includes bypass)
102 lpm
OPERATING PRESSURES
Minimum/Maximum
20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum
40 o - 110 o F (4 o - 43 o C
METER
Accuracy
+ 5%
Flow Rate Range
1 - 102 lpm
Volume Range
0.10 m 3 - 2000.0 3
Totalizer
1 m 3 99,999 m 3
DIMENSIONS & WEIGHT
Distributor Pilot
1.050" OD Pipe (3/4" NPS)
Drain Line
3/4" or 1" NPT
Brine Line
3/e" or Y2" OD Poly Tube
Mounting Base
2 lin- 8 NPSM
Height From Top Of Tank
7 3/e (187 mm)
Weight
4.5 lbs (2 kg)
ELECTRICAL SPECIFICATIONS
Supply Voltage
120V AC.....230V AC
Supply Frequency
60 Hz......50 Hz
Output Voltage
12V AC.....12V AC
Output Current
500 mA......500 mA
TANK APPLICATIONS
Water Softener
IP 22" Diameter
Water Filter (2)
ir • 22' Diameter
CYCLES OF OPERATION
Choose up to nine regeneration cycles, in any order, with a wide range of available values:
Cycle
Range of values
Backwash
1 - 120 minutes
Rinse
1 -120 minutes
Pause (service)
1 - 480 minutes
Brine (co-current)
1 - 180 minutes
Brine (counter-current)
1 - 180 minutes
Refill (softener)
0.05 - 95.00 Kg
Refill (filter)
0.05 - 95.00 Liters

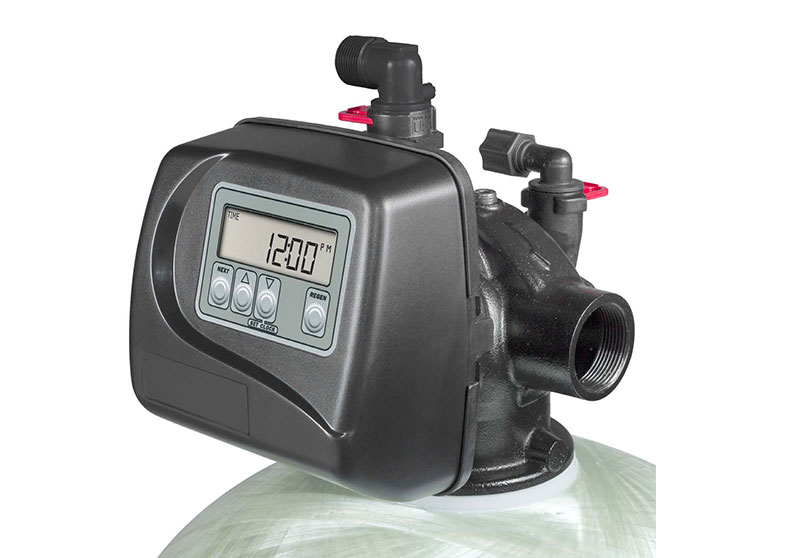

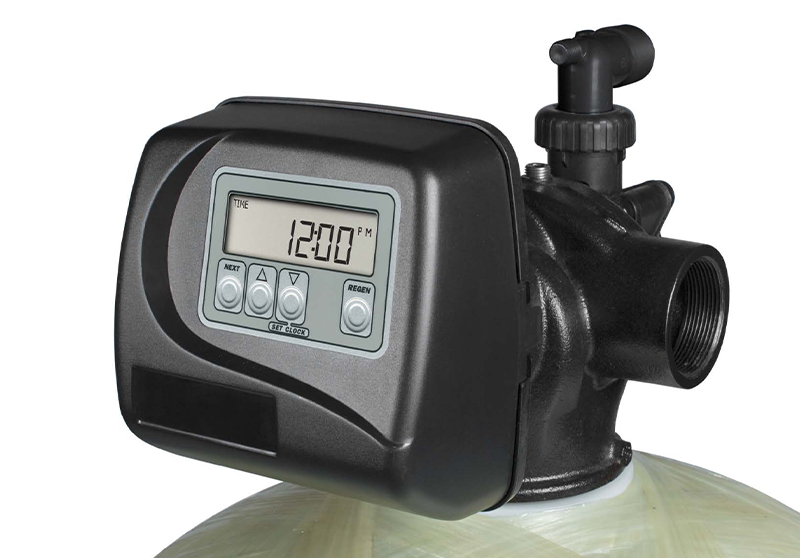

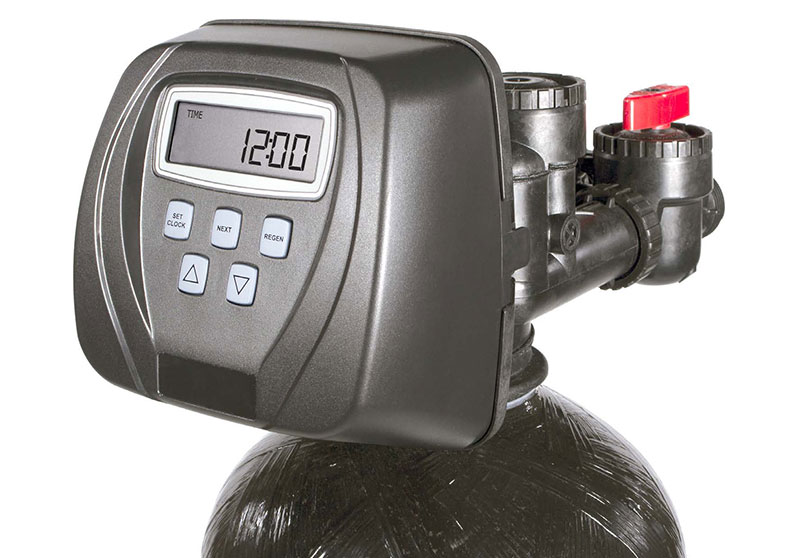

Water Specialist 1" EI Control Specifications
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Backwash and brining ability to 22" diameter tanks Downflow regeneration
- 12-volt output AC Adapter provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Treated water regenerant refill • Reliable and proven DC drive
Inlet/Outlet Fittings
3/4" to 1.25" NPS
Cycles
up to 6
Valve Material
Nory (1) or equivalent
Regeneration
downflow
FLOW RATES
Service @ 15 psi/1 bar drop (includes bypass and meter)
102 lpm
Backwash @ 25 psi/1.7 bar drop (includes bypass)
102 lpm
OPERATING PRESSURES
Minimum/Maximum
20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum
40 o - 110 o F (4 o - 43 o C
METER
Accuracy
+ 5%
Flow Rate Range
95 - 102 lpm
Volume Range
0.500 - 250.0 m 3
Totalizer
0.001 - 9,999000 m 3
DIMENSIONS & WEIGHT
Distributor Pilot
1.050" OD Pipe (3/4" NPS)
Drain Line
3/4" or 1" NPT
Brine Line
3/8" or 1/2" OD Poly Tube
Mounting Base
2 1/2"- 8 NPSM
Height From Top Of Tank
7 3/8" (187 mm)
Weight
4.5 lbs (2 kg)
ELECTRICAL SPECIFICATIONS
Supply Voltage
120V AC.....230V AC
Supply Frequency
60 Hz......50 Hz
Output Voltage
12V AC.....12V AC
Output Current
500 mA......500 mA
TANK APPLICATIONS
Water Softener
6" - 22" Diamrter
Water Filter (2)
6" - 22" Diamrter
CYCLES OF OPERATION
Choose up to nine regeneration cycles, in any order, with a wide range of available values:
Cycle
Range of times minutes
Backwash
1 - 120 minutes
Backwash 1 st upflow
1 - 20 or off
Regenerate Draw / slow rinse (downflow)
1 - 99 or off
Backwash 2 nd upflow
1 - 00 or off
Fast Rines (downflow)
1 - 20 or off
Regenerate Refill
0.1 to 99.9 or off
Service (downflow)

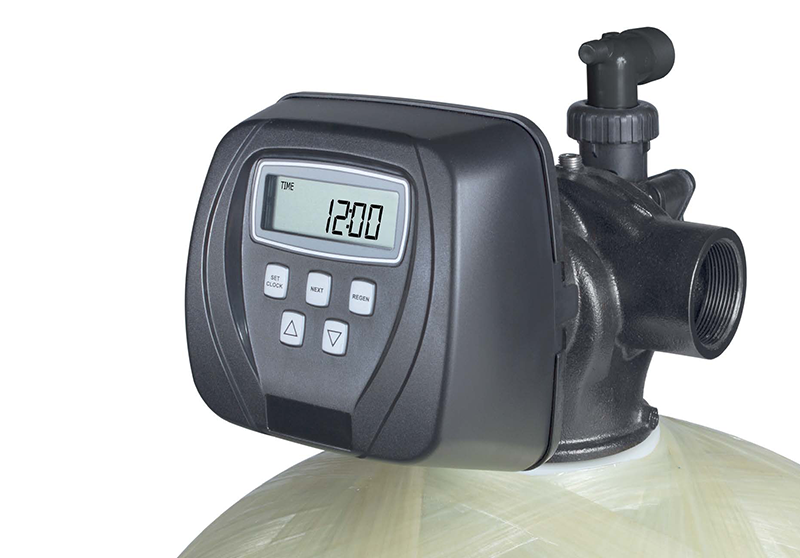

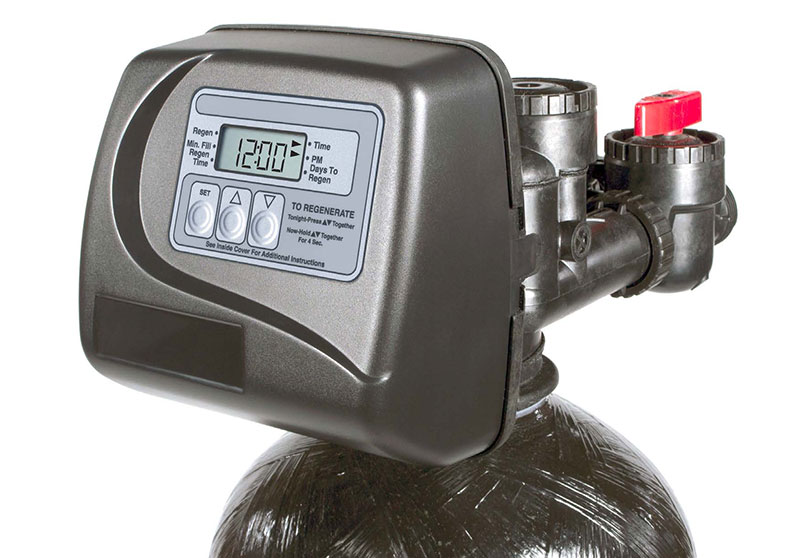

Water Specialist 1" TC Control Specifications
- Backwash and brining ability to 22" diameter tanks
- Solid state microprocessor with easy access front panel settings
- Double backwash feature offers efficiency, optimum regeneration and cleaning ability
- Days between regeneration feature: 1-99 days standard; 7-day optional
- Downflow regeneration
- 10 selectable pre-programmed regeneration cycles
- Stores system configuration and operation data in nonvolatile memory
- 12-volt output AC Adapter provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Treated water regenerant refill
- Reliable and proven DC drive
Inlet/Outlet Fittings
3/4" to 1.25" NPS
Cycles
up to 6
Valve Material
Nory (1) or equivalent
Regeneration
downflow
FLOW RATES
Service @ 15 psi/1 bar drop (includes bypass)
27 gpm
Backwash @ 25 psi drop (includes bypass)
27 gpm
Cv service
7.0
Cv backwash
5.4
OPERATING PRESSURES
Minimum/Maximum
20 psi
OPERATING TEMPERATURES
Minimum/Maximum
40 o - 110 o F
DIMENSIONS & WEIGHT
Distributor Pilot
1.050" OD Pipe (3/4" NPS)
Drain Line
3/4" or 1" NPT
Brine Line
3/8" or 1/2" OD Poly Tube
Mounting Base
2 1/2"- 8 NPSM
Height From Top Of Tank
7 3/8"
Weight
4.5 lbs lbs
ELECTRICAL SPECIFICATIONS
Supply Voltage
120V AC.....230V AC
Supply Frequency
60 Hz......50 Hz
Output Voltage
12V AC.....12V AC
Output Current
500 mA......500 mA
TANK APPLICATIONS
Water Softener
6" - 22" Diamrter
Water Filter (2)
6" - 22" Diamrter
CYCLES OF OPERATION
Cycle
Range of times minutes
Backwash 1 st upflow
3 - 12
Regenerate Draw / slow rinse (downflow)
50 - 70
Backwash 2 nd upflow
3 - 12
Fast Rines (downflow)
3 - 8
Regenerate Refill
AS Programmed
Service (downflow)

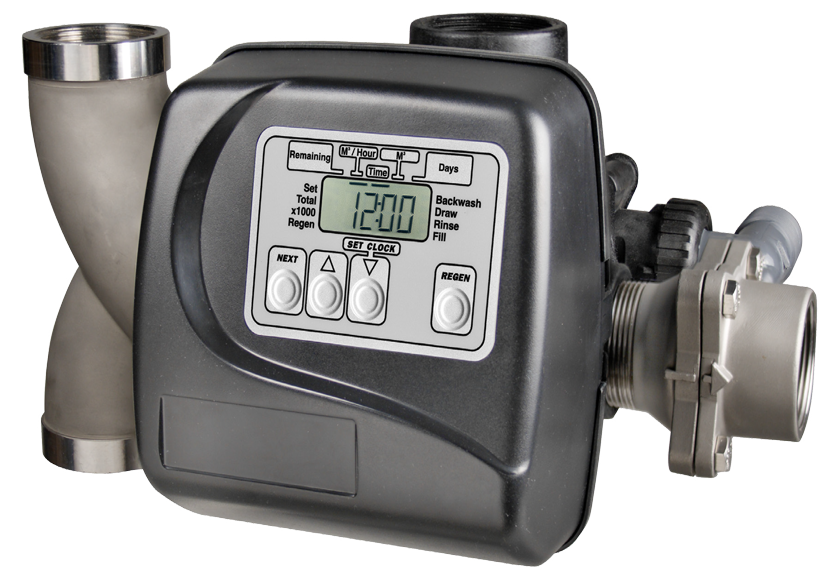

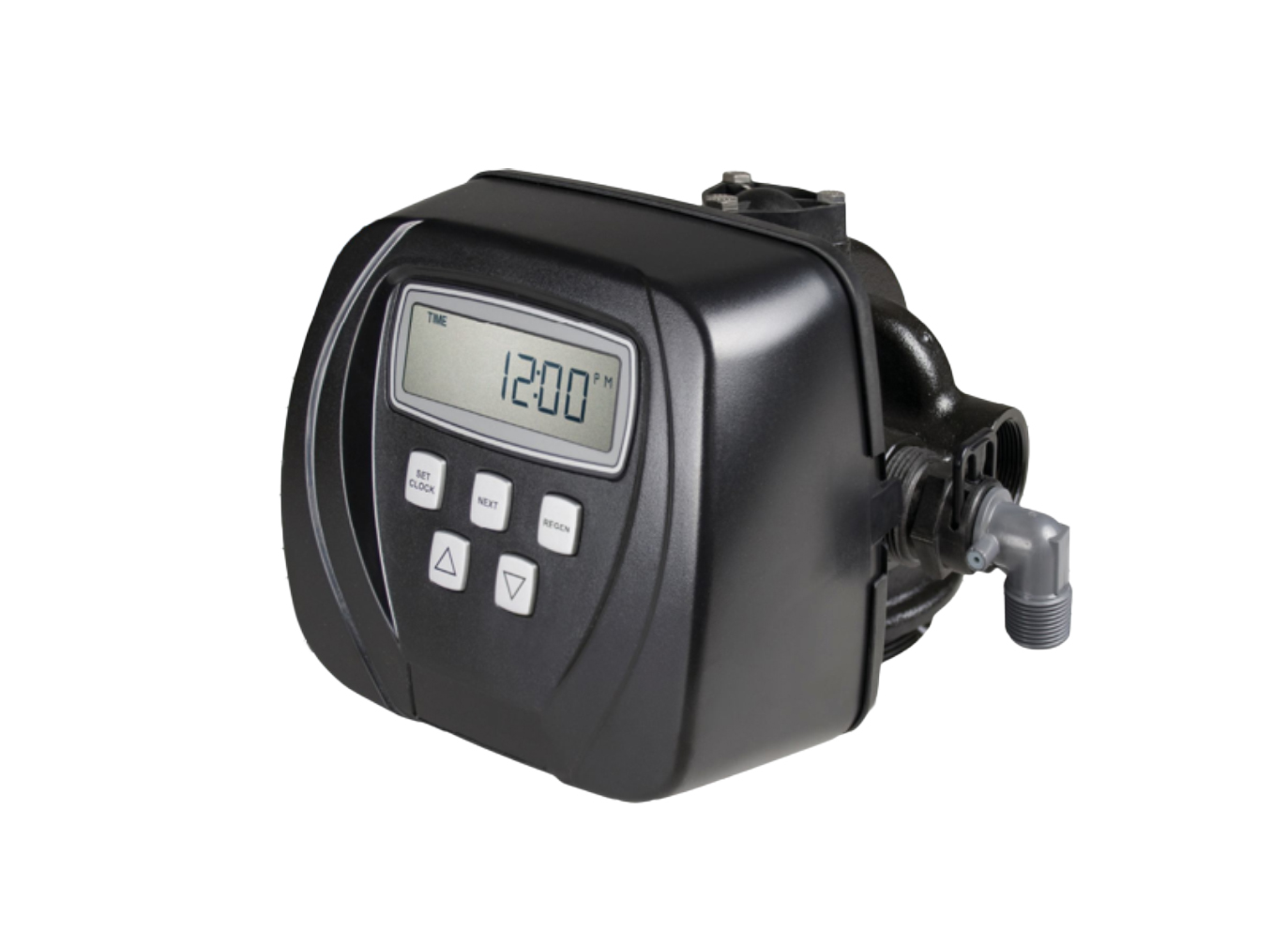

Water Specialist 1.5" CI Control Specifications
- 1.5" top mount control valve suited for mid-size commercial/industrial applications
- Lead free brass valve body
- Economical optional meter
- Service flow rate of 227 lpm, backwash 189 lpm
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining and current flow rate
- Four methods to initiate the downflow regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1-28 days available
- 12-volt output AC Adapter provides safe and easy installation
- Treated water regenerant refill
- Low salt alarm
- 24 hour clock
- Coin Cell Lithium battery back-up with a 24 hour carry over
- Reliable and proven DC drive
Inlet/Outlet (1)
1.5" FPT
Cycles
up to 9
Valve Material
Lead free brass
Regeneration
downflow
FLOW RATES
Service @ 15 psi/1 bar drop (includes meter)
60 gpm (227 lpm)
Backwash @ 25 psi/1.7 bar drop
50 gpm (189 lpm)
OPERATING PRESSURES
Minimum/Maximum
20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum
40 o - 110 o F (4 o - 43 o C
METER
Accuracy
+ 5%
Flow Rate Range
0.5 - 60 gpm (2 - 227 ipm)
Volume Range
0.02 to 2000.0m 3
Totalizer
1 - 99,999 m 3
DIMENSIONS & WEIGHT
Distributor Pilot
Valve bodies with female 1.5" NPT intel & Outlet
1.90" OD (1.5" NPS)
Valve bodies with female 1.5" BSPT intel & Outlet
50 mm OD
Drain Line (2)
1.25 FTP
Brine Line
3/4" FTP
Adapters Available
1/2" OD Poly Tube
Mounting Base
4" - 8UN
Height From Top Of Tank
7.5" (191 mm)
Shipping Weight With Meter
21 lbs (9.5 kg)
ELECTRICAL SPECIFICATIONS
Supply Voltage
120V AC.....230V AC
Supply Frequency
60 Hz......50 Hz
Output Voltage
12V AC.....12V AC
Output Current
500 mA......500 mA
TANK APPLICATIONS
Water Softener
12" - 24" Diameter
Water Filter (3)
12" - 30" Diameter
CYCLES OF OPERATION
Choose up to nine regeneration cycles, in any order, with a wide range of available values:
Cycle
Range of values
Backwash
1 - 120 minutes
Rinse
1 -120 minutes
Pause (service)
1 - 480 minutes
Brine (co-current)
1 - 180 minutes
Brine (counter-current)
1 - 180 minutes
Refill (softener)
0.05 - 95.00 Kg
Refill (filter)
0.05 - 95.00 Liters
Water Specialist 1.5" EI Control Specifications
- 1.5" top mount control valve suited for mid-size commercial/industrial applications
- Lead free brass valve body
- Economical optional meter
- Service flow rate of 227 lpm, backwash 189 lpm
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- 12-volt output AC Adapter provides safe and easy installation
- Treated water regenerant refill
- 24 hour clock
- Reliable and proven DC drive
Inlet/Outlet (1)
1.5" FPT
Cycles
up to 6
Valve Material
Lead free brass
Regeneration
downflow
FLOW RATES
Service @ 15 psi/1 bar drop (includes meter)
60 gpm (227 lpm)
Backwash @ 25 psi/1.7 bar drop
50 gpm (189 lpm)
OPERATING PRESSURES
Minimum/Maximum
20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum
40 o - 110 o F (4 o - 43 o C
METER
Accuracy
+ 5%
Flow Rate Range
0.5 - 60 gpm (2 - 227 ipm)
Volume Range
1.000 - 500.0 m3
Totalizer
0.001 - 9,999,000 m 3
DIMENSIONS & WEIGHT
Distributor Pilot
Valve bodies with female 1.5" NPT intel & Outlet
1.90" OD (1.5" NPS)
Valve bodies with female 1.5" BSPT intel & Outlet
50 mm OD
Drain Line (2)
1.25 FTP
Brine Line
3/4" FTP
Adapters Available
1/2" OD Poly Tube
Mounting Base
4" - 8UN
Height From Top Of Tank
7.5" (191 mm)
Shipping Weight With Meter
21 lbs (9.5 kg)
ELECTRICAL SPECIFICATIONS
Supply Voltage
120V AC.....230V AC
Supply Frequency
60 Hz......50 Hz
Output Voltage
12V AC.....12V AC
Output Current
500 mA......500 mA
TANK APPLICATIONS
Water Softener
12" - 24" Diameter
Water Filter (3)
12" - 30" Diameter
CYCLES OF OPERATION
Choose up to nine regeneration cycles, in any order, with a wide range of available values:
Cycle
Range of values
Backwash
1 - 120 minutes
Rinse
1 -120 minutes
Pause (service)
1 - 480 minutes
Brine (co-current)
1 - 180 minutes
Brine (counter-current)
1 - 180 minutes
Refill (softener)
0.05 - 95.00 Kg
Refill (filter)
0.05 - 95.00 Liters
Water Specialist 1.25" CI Control Specifications
- Solid state microprocessor with easy access front panel settings
- Three modes of operation; meter immediate, meter delayed, or time clock delayed
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1 — 28 days available
- Backwash and brining ability to 22" diameter tanks
- Downflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with a 24 hour carry over
- 12-volt output AC Adapter provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Treated water regenerant refill
- Mixing valve option available
- Low salt alarm
- 24-hour clock
- Reliable and proven DC drive
Inlet/Outlet Fittings
3/4" to 1.25" NPS
Cycles
up to 9
Valve Material
Nory (1) or equivalent
Regeneration
downflow
FLOW RATES
Service @ 15 psi/1 bar drop (includes bypass and meter)
34 gpm (129 lpm)
Backwash @ 25 psi/1.7 bar drop (includes bypass)
32 gpm (121 lpm) (2)
OPERATING PRESSURES
Minimum/Maximum
20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum
40 o - 110 o F (4 o - 43 o C
METER
Accuracy
+ 5%
Flow Rate Range
1 - 129 lpm
Volume Range
010 m 3 - 2000.0 m 3
Totalizer
1 - 99,999 m 3
DIMENSIONS & WEIGHT
Distributor Pilot
1.32" OD pipe (1" NPS) or 32 mm OD
Drain Line
3/4" or 1" NPT
Brine Line
3/8" or 1/2" OD Poly Tube
Mounting Base
2 1/2"- 8 NPSM
Height From Top Of Tank
7 3/8" (187 mm)
Weight
4.5 lbs (2 kg)
ELECTRICAL SPECIFICATIONS
Supply Voltage
120V AC.....230V AC
Supply Frequency
60 Hz......50 Hz
Output Voltage
12V AC.....12V AC
Output Current
500 mA......500 mA
TANK APPLICATIONS
Water Softener
6" - 22" Diamrter
Water Filter (2)
6" - 22" Diamrter
CYCLES OF OPERATION
Choose up to nine regeneration cycles, in any order, with a wide range of available values:
Cycle
Range of times minutes
Backwash
1 - 120 minutes
Rinse
1 - 120 minutes
Pause (service)
1 - 480 minutes
Brine (co-current)
1 - 180 minutes
Refill (softener)
0.05 - 95.00 kg
Refill (fillter)
0.05 - 95.00 liters
Service (downflow)
Water Specialist 1.25" EI Control Specifications
- Solid state microprocessor with easy access front panel settings
- Three modes of operation; meter immediate, meter delayed, or time clock delayed
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1 — 28 days available
- Backwash and brining ability to 22" diameter tanks
- Downflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with a 24 hour carry over
- 12-volt output AC Adapter provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Treated water regenerant refill
- Mixing valve option available
- Low salt alarm
- 24-hour clock
- Reliable and proven DC drive
Inlet/Outlet Fittings
3/4" to 1.25" NPS
Cycles
up to 6
Valve Material
Nory (1) or equivalent
Regeneration
downflow
FLOW RATES
Service @ 15 psi/1 bar drop (includes bypass and meter)
34 gpm (129 lpm)
Backwash @ 25 psi/1.7 bar drop (includes bypass)
32 gpm (121 lpm) (2)
OPERATING PRESSURES
Minimum/Maximum
20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum
40 o - 110 o F (4 o - 43 o C
METER
Accuracy
+ 5%
Flow Rate Range
0.95 - 129 lpm
Volume Range
0.500 - 250.0 m 3
Totalizer
0.001 - 9,999,000 m 3
DIMENSIONS & WEIGHT
Distributor Pilot
1.32" OD pipe (1" NPS) or 32 mm OD
Drain Line
3/4" or 1" NPT
Brine Line
3/8" or 1/2" OD Poly Tube
Mounting Base
2 1/2"- 8 NPSM
Height From Top Of Tank
7 3/8" (187 mm)
Weight
4.5 lbs (2 kg)
ELECTRICAL SPECIFICATIONS
Supply Voltage
120V AC.....230V AC
Supply Frequency
60 Hz......50 Hz
Output Voltage
12V AC.....12V AC
Output Current
500 mA......500 mA
TANK APPLICATIONS
Water Softener
6" - 22" Diamrter
Water Filter (2)
6" - 22" Diamrter
CYCLES OF OPERATION
Choose up to nine regeneration cycles, in any order, with a wide range of available values:
Cycle
Range of times minutes
Backwash 1 st (upflow)
1 - 12 or off
Regenerate Draw/Show Rinse (downflow)
1 - 99 or off
Backwash 2 nd (upflow)
1 - 20 or off
Fast Rinse (downflow)
1 - 20 or off
Regenerate Refill (in service with treted water)
0.1 to 99.9 or off
Service (downflow)
Water Specialist 1.25" TC Control Specifications
- Backwash and brining ability to 22" diameter tanks
- Solid state microprocessor with easy access front panel settings
- Double backwash feature offers efficiency, optimum regeneration and cleaning ability
- Days between regeneration feature: 1-99 days standard; 7-day optional
- Downflow regeneration
- 10 selectable pre-programmed regeneration cycles
- Stores system configuration and operation data in nonvolatile memory
- 12-volt output AC Adapter provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Treated water regenerant refill
- Reliable and proven DC drive
Inlet/Outlet Fittings
3/4" to 1.25" NPS
Cycles
up to 6
Valve Material
Nory (1) or equivalent
Regeneration
downflow
FLOW RATES
Service @ 15 psi/1 bar drop (includes bypass and meter)
34 gpm (129 lpm)
Backwash @ 25 psi/1.7 bar drop (includes bypass)
32 gpm (121 lpm) (2)
Cv service
8.8
Cv backwash
6.4
OPERATING PRESSURES
Minimum/Maximum
20 - 125 psi (1.4 - 8.6 bar)
OPERATING TEMPERATURES
Minimum/Maximum
40 o - 110 o F (4 o - 43 o C
DIMENSIONS & WEIGHT
Distributor Pilot
1.32" OD pipe (1" NPS) or 32 mm OD
Drain Line
3/4" or 1" NPT
Brine Line
3/8" or 1/2" OD Poly Tube
Mounting Base
2 1/2"- 8 NPSM
Height From Top Of Tank
7 3/8" (187 mm)
Weight
4.5 lbs (2 kg)
ELECTRICAL SPECIFICATIONS
Supply Voltage
120V AC.....230V AC
Supply Frequency
60 Hz......50 Hz
Output Voltage
12V AC.....12V AC
Output Current
500 mA......500 mA
TANK APPLICATIONS
Water Softener
6" - 22" Diamrter
Water Filter (2)
6" - 22" Diamrter
CYCLES OF OPERATION
Choose up to nine regeneration cycles, in any order, with a wide range of available values:
Cycle
Range of times minutes
Backwash 1 st (upflow)
3 - 12
Regenerate Draw/Show Rinse (downflow)
50 - 70
Backwash 2 nd (upflow)
3 - 12
Fast Rinse (downflow)
3 - 8
Regenerate Refill (in service with treted water)
As progrsmed
Service (downflow)
Water Specialist 1.5” EE Control Specifications
- 1.5" top mount control valve suited for mid-size commercial/industrial applications
- Epoxy coated lead free brass valve body*
- Economical stainless steel optional meter assembly
- Service flow rate of 70 gpm, backwash 52 gpm
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining or upflow brining, slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with a 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
- Reliable and proven DC drive
Water Specialist 2” CI Control Specifications
- 2” Top mount control valve suited for commercial/industrial applications
- Lead free brass construction
- Economical stainless steel optional meter assembly
- Service flow rate of 435 lpm (26.1 m3/h) (115 gpm), backwash 303 lpm (18.2 m3/h) (80 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining and current flow rate.
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential time clock delayed or pressure differential
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1-28 days available
- Coin Cell Lithium battery back-up with an 24 hour carry over
- 12-volt output AC Adapter provides safe and easy installation
- Pre or Post treated water regenerant refill
- 24 Hour Clock
- Reliable and proven DC drive

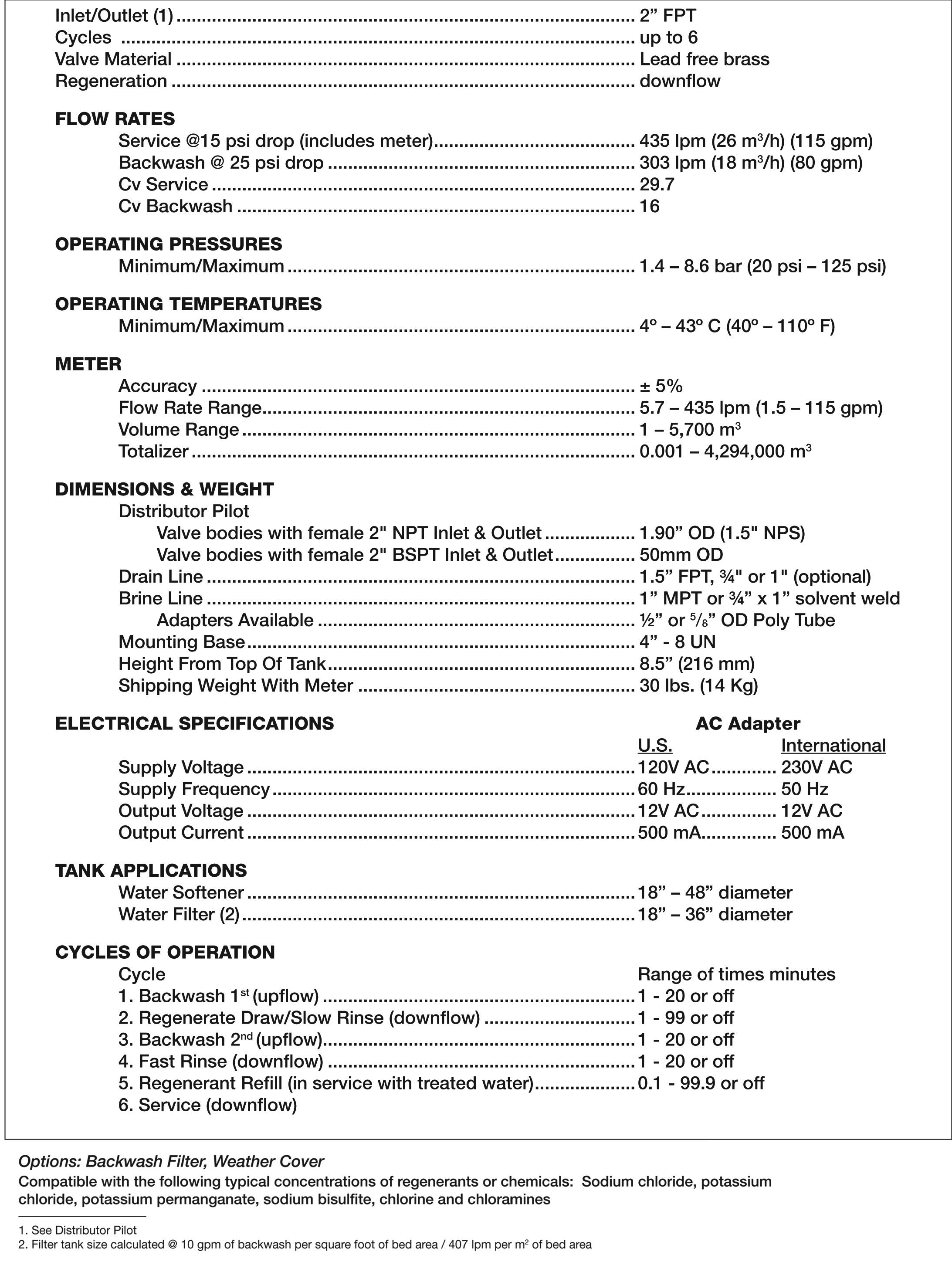

Water Specialist 2” EI / EE Control Specifications
- 2" Top mount control valve suited for commercial/industrial applications
- Lead free brass construction
- Economical stainless steel optional meter assembly
- Service flow rate of 136 Ipm, backwash 303 Ipm
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day. days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate. meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash. downflow brining/slow rinse, second backwash. fast rinse, refill and dc.vnflow service
- Coin Cell Lithium battery back-up with an 8 hour carry over
- 12-volt output AC Adapter provides safe and easy installation
- Treated water regenerant refill
- 24 Hour Clock
- Reliable and proven DC drive

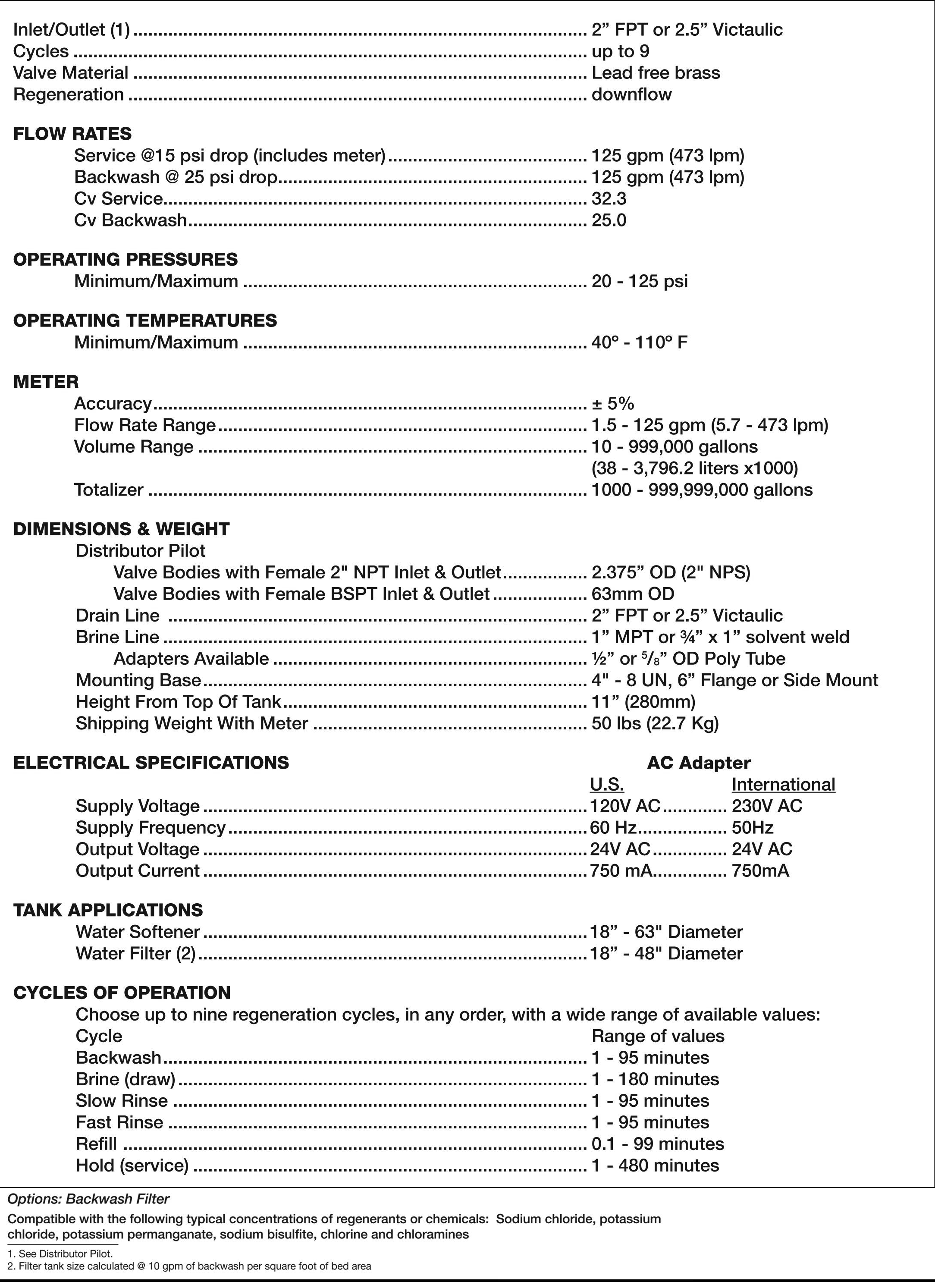

Water Specialist 2” H Control Specifications
- 2" Top mount or side mount control valve suited for commercial and industrial applications
- Lead free brass valve body and optional bypass value
- Meter standard with all valves
- Services flow rate 125 gpm(473 ipm),Backwash flow rate 125 gpm(473 ipm)
- Solid state microprocessor with easy access front removable POD
- Front panel display for Time of Day, Current Flow Rate, Totalizer and Volume/Days until Rageneration
- Four methods to tnitiate the down flow regeneration; meter delayed, meter immediate, time clock delayed, or pressure differential
- Fully programmable regeneration cycle sequences(maximum 9)
- Fully programmable regeneration cycle Times
- Treated water regenerant refill
- Days override feature; 1-28 days available
- capacitor back-up with up to 24 hour power carry over
- 24-volt output AC adapter provides safe and easy installation
- Reliable and proven DC drive

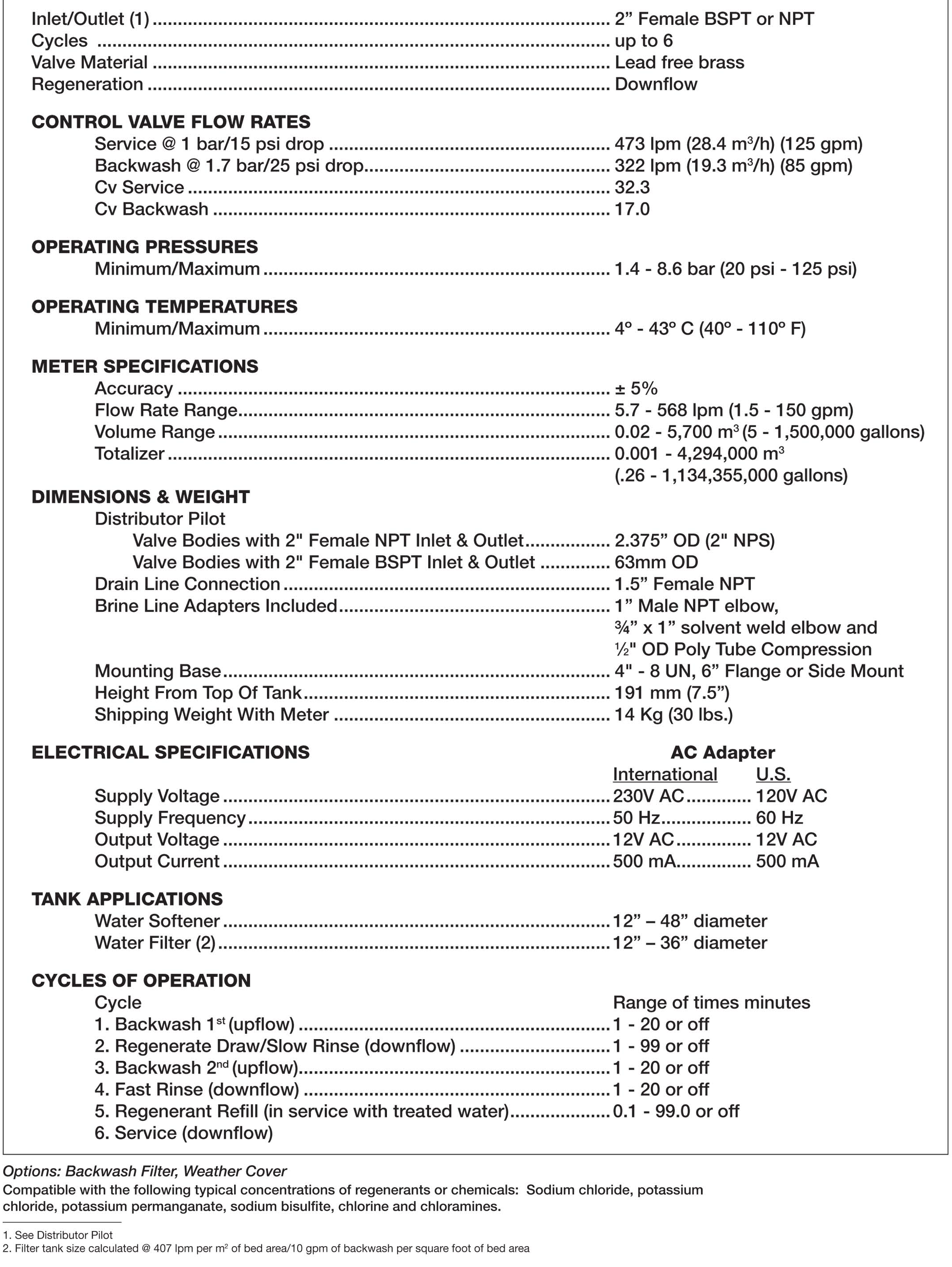

Water Specialist 2” EI/QC Control Specifications
- 2" Top mount or side mount control valve suited for commercial/industrial applications
- Lead free brass construction
- Economical stainless steel optional meter assembly
- Services flow rate 473 gpm(28.4 m/h) (125 gpm), backwash 322 ipm (19.3 m/h) (85 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration,volume remaining, current flow rate and total volume used(Totalizer)
- Four methods to tnitiat regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration cleaning abillity and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash,downflow brining/slow rinse, second backwash,fast rinse,refill and dowmflow sevices
- Coin Cell Lithium battery back-up with an 8 hour power carry over
- 24-volt output AC adapter provides safe and easy installation
- Treated water regenerant refill
- Reliable and proven DC drive

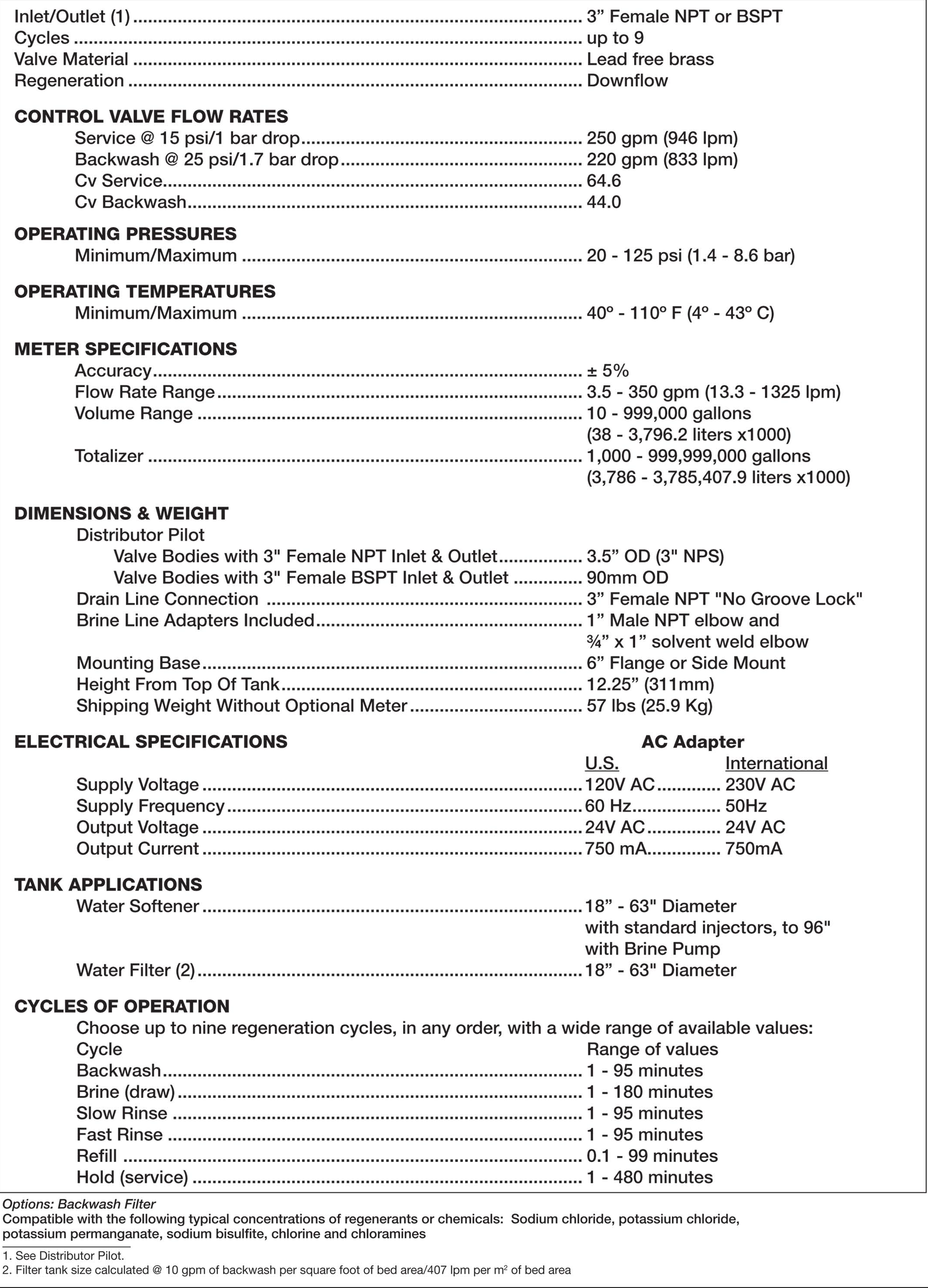

Water Specialist 3” Control Specifications
- 3" Top mount or side mount control valve suited for commercial/industrial applications
- Lead free brass valve body
- Economical stainless steel optional meter assembly
- Services flow rate 250 gpm(946 ipm), backwash flow rate 220 gpm(833 ipm)
- Solid state microprocessor with easy access front removable POD

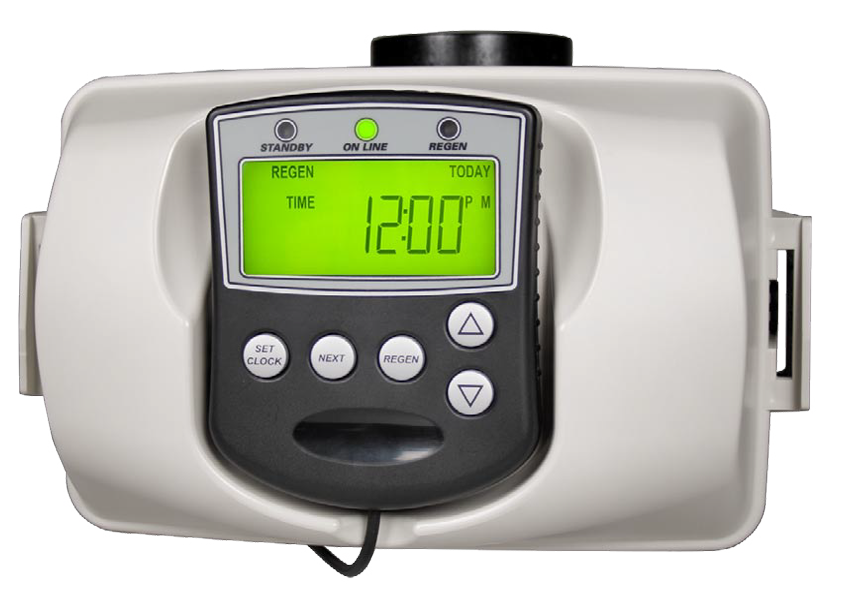

- Front panel display for time of day, currentflow rate, Totallizer and vloume/days until regeneration
- Four methods to tnitiat regeneration; current flow rate meter delayed,meter immediate, time clock delayed or pressure differential
- Fully programmable regeneration cycle sequences(maximum 9)
- Fully programmable regeneration cycle times
- Treated water regenerant refill
- Days override feature;1-28 days available
- capacitorvack-up with up to 24 hour power carry over
- 24-volt output AC adapter provides safe and easy installation
- Reliable and proven DC drive
