BNT Manual Valves

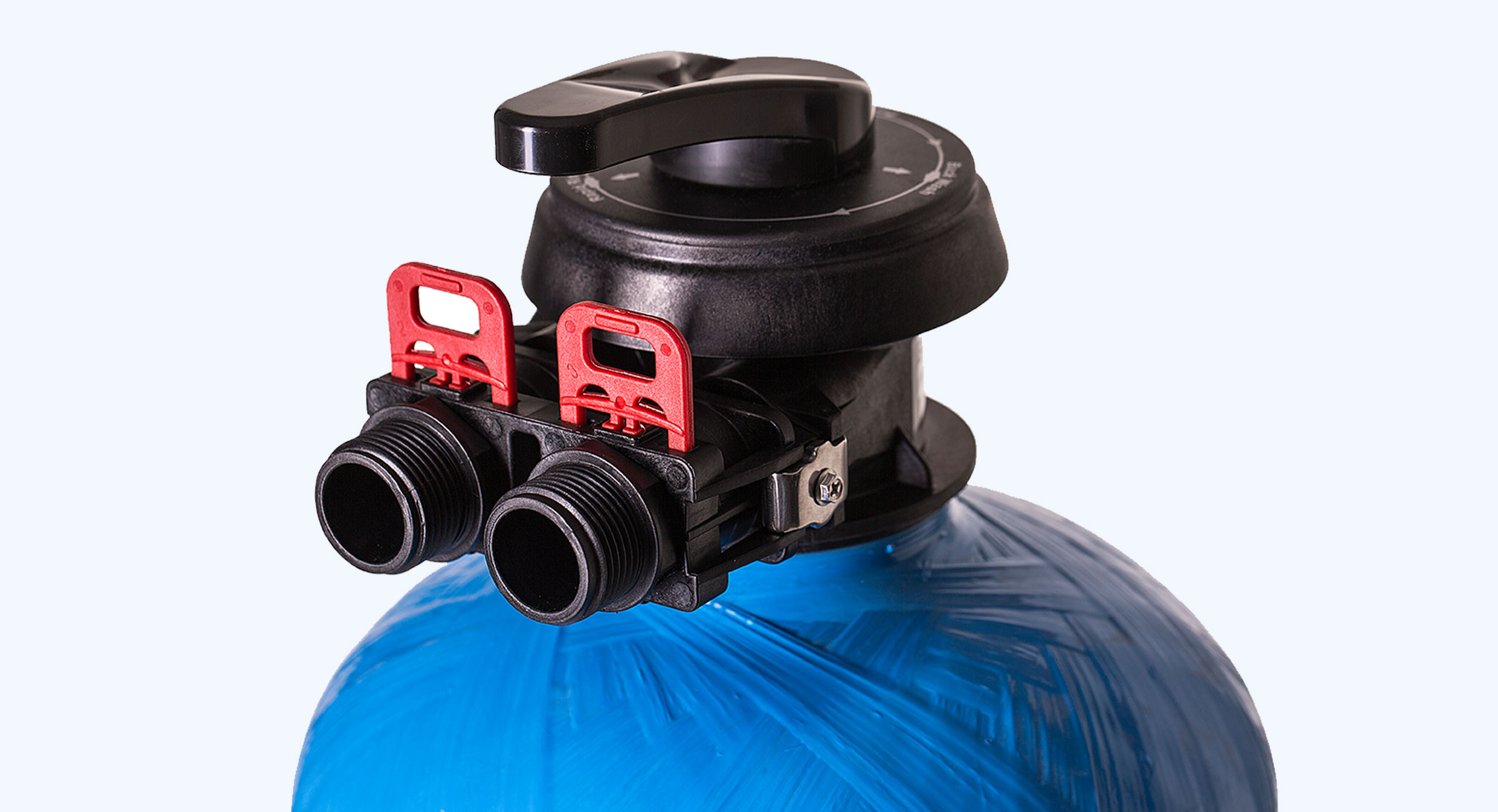

BNT 631 M is a control valve which manually initiates the backwash cycle via a hand wheel. The backwash cycle includes the backwash as well as the quick rinse, which are each adjusted by turning the hand wheel. The valve requires no electricity and provides safe, reliable and easy operation. A child lock is also built into the control head and thus ensures protection for unwanted operation. The backwash can be done at any time via the hand wheel.

Features

  • Use back pressure technique for sealing, eliminate leaking problem.
  • No requirement of electricity, easy to operate.
  • Child lock protection designed for safety use.
low network
BNT-631M(T) Filter Valve
BNT-111 Filter Valve
BNT-631M(T)-02 Filter Valve

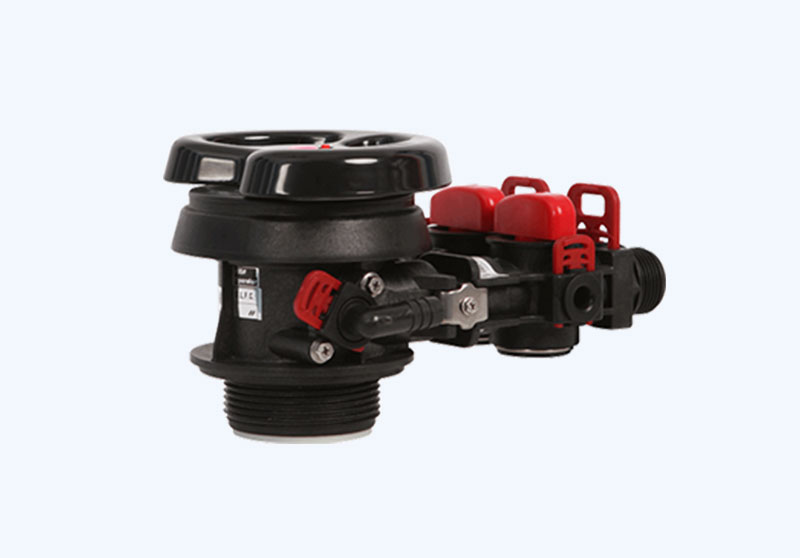

BNT-631M(T) Filter Valve

Features:

  • Use back pressure technique for sealing, eliminate leaking problem.
  • No requirement of electricity, easy to operate.
  • Child lock protection designed for safety use.
  • Canature bypass valve can be installed.

SPECIFICATIONS

Model BNT631M(T)
Valve Body Material NORYL(PPO)
Plumbing Connections Straight 1/2" ,3/4",1"BSP&NPT
Elbow 1/2" ,3/4",1"BSP&NPT
Tank Thread 2-1/2” NPSM
Distributor Pilot 1.05"
Flow Rates(Valve Only 50 psi Inlet)
Continuous(15 psi drop) 3000L/H
Peak(25 psi drop) 4100L/H
Max Backwash(25 psi drop) 2200L/H
Cv 3.5
Typical Applications
Fiters Up to 12" Diameter
Operation Ratings
Operation Pressure 0.14~0.6Mpa
Water Temperature 1~42℃
Approvals
NSF44,CE,RoHS ACS
Additional Information
Carton Size 235x150x150mm
Shipping Weight 1Kg
Salt rejection and product flow are variable and can be effected by temperature and feed water conditions.

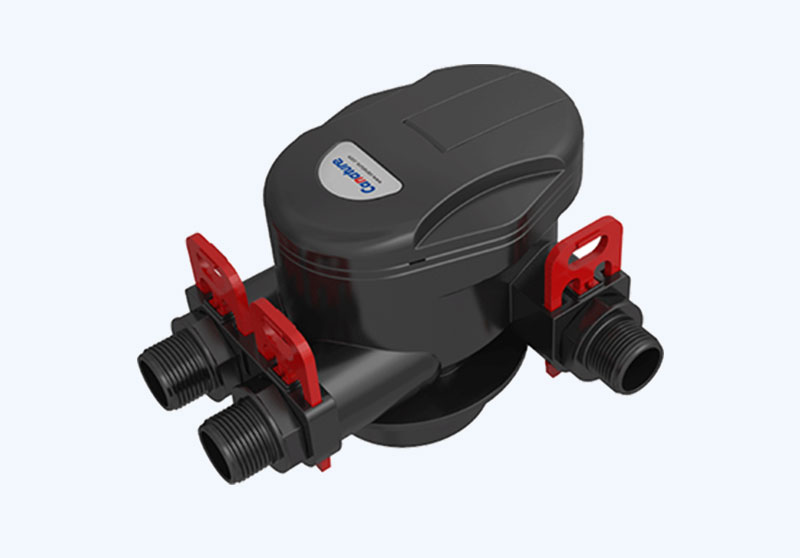

BNT-111 Filter Valve

Features:

  • Design for filter system requires high back wash washing flow rate.
  • Simple steps to initiate back wash process.
  • Two holes inside design for DLFC installation to get the proper back wash flow rate.
  • Time saving quick connect fittings on inlet,outlet and drain line.

SPECIFICATIONS

Model BNT631M(T)
Valve Body Material Anti-UV PP+
NORYL(PPO)
Plumbing Connections Straight 1" BSP&NPT
Elbow 1" BSP&NPT
Tank Thread 2-1/2” NPSM
Distributor Pilot 1.05"
Drain Line 1/2” Quick Connect
Flow Rates(Valve Only 50 psi Inlet)
Continuous(15 psi drop) 4500/H
Peak(25 psi drop) 5900L/H
Max Backwash(25 psi drop) 5600L/H
Cv 5.2
Typical Applications
Fiters 6"~14" Diameter
Operation Ratings
Operation Pressure 0.2~0.6Mpa
0.2~0.87Mpa(PPO)
Water Temperature 1~42℃
Approvals
NSF44,CE,RoHS ACS
Additional Information
Carton Size 165x145x140mm
Shipping Weight 1Kg
Salt rejection and product flow are variable and can be effected by temperature and feed water conditions.

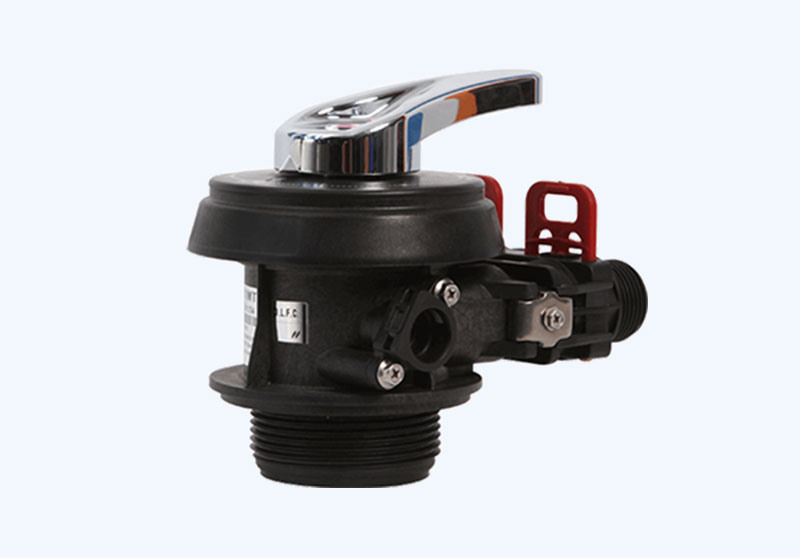

BNT-631M(T)-02 Filter Valve

Features:

  • Use back pressure technique for sealing, eliminate leaking problem.
  • No requirement of electricity, easy to operate.
  • Child lock protection designed for safety use.
  • Canature bypass valve can be installed.

SPECIFICATIONS

Model BNT631M(T)
Valve Body Material NORYL(PPO)
Plumbing Connections Straight 1/2" ,3/4",1"BSP&NPT
Elbow 1/2" ,3/4",1"BSP&NPT
Tank Thread 2-1/2” NPSM
Distributor Pilot 1.05"
Flow Rates(Valve Only 50 psi Inlet)
Continuous(15 psi drop) 3000L/H
Peak(25 psi drop) 4100L/H
Max Backwash(25 psi drop) 2200L/H
Cv 3.5
Typical Applications
Fiters Up to 12" Diameter
Operation Ratings
Operation Pressure 0.14~0.6Mpa
Water Temperature 1~42℃
Approvals
NSF44,CE,RoHS ACS
Additional Information
Carton Size 230x150x150mm
Shipping Weight 2Kg
Salt rejection and product flow are variable and can be effected by temperature and feed water conditions.
